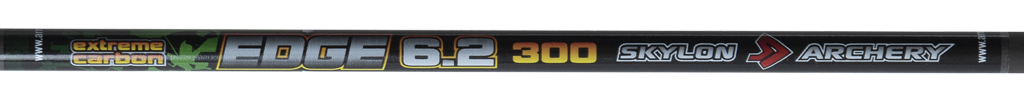

Skylon Edge Stab - Wunschlänge
Der Skylon Edge folgt dem Standard-Carbonschaft-Durchmesser und wird in preisbewussten Drachen universell eingesetzt. Wegen des höheren Carbonanbrieb empfehlen wir den Einsatz von Stab Sleeves zum Schutz des Segels.
Durch den 0,244″ / 6,2mm Innendurchmesser, passen in den Skylon Eddge die meisten auf dem Markt verfügbaren 5/16″ bzw. 9/32″ Komponenten pass genau. Du kannst so auf vertraute oder bereits vorhandene Komponenten zurückgreifen.
Material: 24-TON Carbon
Inner Diameter: 6.2mm / .244"
Straightness Tolerance: ±.005"
Stab | Stab | Spine | AD in mm | Grain per Inch | Gramm per Inch | Gewicht in Gramm auf 33" | Gewicht in Gramm auf 31" | Segel / Wind |
Skylon Edge | SLE300 | 300 | 7,55 | 8,5 | 0,55 | 18,18 | 17,07 | STD/VTD |
Skylon Edge | SLE350 | 350 | 7,39 | 7,61 | 0,49 | 16,27 | 15,29 | STD/VTD |
Skylon Edge | SLE400 | 400 | 7,35 | 7,33 | 0,47 | 15,67 | 14,72 | STD |
Skylon Edge | SLE500 | 500 | 7,12 | 5,8 | 0,38 | 12,40 | 11,65 | UL |
Skylon Edge | SLE600 | 600 | 7,05 | 5,58 | 0,36 | 11,93 | 11,21 | UL |
Skylon Edge | SLE700 | 700 | 7 | 5,12 | 0,33 | 10,95 | 10,28 | SUL |
Skylon Edge | SLE800 | 800 | 6,85 | 4,2 | 0,27 | 8,98 | 8,44 | SUL |
Empfohlener Einsatz Leitkannte |
|
700 - 700 - 700 (Normal) | SUL |
700 - 500 - 700 (Race SUL) | UL |
600 - 600 - 600 (Normal) | UL |
600 - 400 - 600 (Race UL / Detox) | UL / Standard |
500 - 500 - 500 (Normal) | UL / Standard |
400 - 350 - 400 (Race UL / Detox) | UL / Standard |
400 - 400 - 400 (Normal) | Standard / Vented |
300 - 300 - 300 (Universal) | Standard / Vented |
350 - 350 - 350 (Universal) | Standard / Vented |
Segelklassifizierung | km/h | |
Super Ultra Light / Indoor | 0 - 5 | SUL |
Ultra Light / Light | 6 - 10 | UL |
Standard | 11 - 20 | Standard / STD |
Mid Vented | 21 - 30 | Mid VTD |
Full Vented | 31 - 40 | VTD |
Super Vented / String | 40 + | XtraVTD / String |
